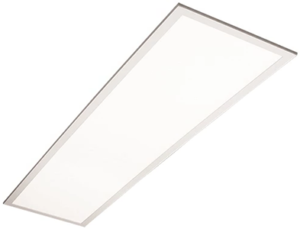

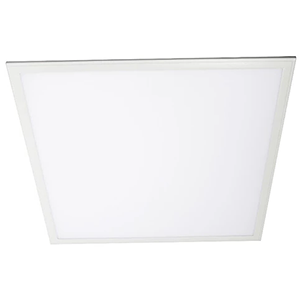

Edge-Lit LED Flat Panel 1×4 2×2 2×4

Edge-Lit LED Flat Panel 1×4 2×2 2×4

Ultra thin edge-lit LED flat panels high performance fixtures will illuminate schools, offices, markets, library’s, and other indoor layin mount lighting.  Quality steel backing is framed in aluminum for excellent heat dissipation.  Easy and multiple installation method: Surface Mounted, Recessed and Hanging.  Suitable for dry and damp locations.

• Wattage is 36 Watts(4,680 LM)
• Lumens per Watt are 130LPW
• Single CCT 4000K or 5000K
• Length is 1 feet by 4 feet(1’x4′)
• 0-10V Dimmable
• Heat resistant acrylic lens diffuser
• Lay-In Standard Mounting
• High Quality 2835 LEDs and Premium Light Guide Plate to provide uniform and pleasant light
• Optimized glare-free light distribution performance with acrylic lens heat resistance
• Suitable for standard T Bar lay-in or drop ceiling application
• Long-life LEDs provide 50,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 15%
• Color rendering index > 80
• IP20 Rated
• ETL Listed
• DLC Listed
• Working Temperature -30 degrees celsius to 45 degrees celsius

• Wattage is 36 Watts(4,680 LM)
• Lumens per Watt are 130LPW
• Single CCT 4000K or 5000K
• Length is 2 feet by 2 feet(2’x2′)
• 0-10V Dimmable
• 0-10V Dimmable
• Heat resistant acrylic lens diffuser
• Lay-In Standard Mounting
• High Quality 2835 LEDs and Premium Light Guide Plate to provide uniform and pleasant light
• Optimized glare-free light distribution performance with acrylic lens heat resistance
• Suitable for standard T Bar lay-in or drop ceiling application
• Long-life LEDs provide 50,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 15%
• Color rendering index > 80
• IP20 Rated
• ETL Listed
• DLC Listed
• Working Temperature -30 degrees celsius to 45 degrees celsius

• Wattage is 48 Watts(6,240 LM)
• Lumens per Watt are 130LPW
• Single CCT 4000K or 5000K
• Length is 2 feet by 4 feet(2’x4′)
• 0-10V Dimmable
• Heat resistant acrylic lens diffuser
• Lay-In Standard Mounting
• High Quality 2835 LEDs and Premium Light Guide Plate to provide uniform and pleasant light
• Optimized glare-free light distribution performance with acrylic lens heat resistance
• Suitable for standard T Bar lay-in or drop ceiling application
• Long-life LEDs provide 50,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 15%
• Color rendering index > 80
• IP20 Rated
• ETL Listed
• DLC Listed
• Working Temperature -30 degrees celsius to 45 degrees celsius

Options

SMK: Surface mount kit

FDK: Flange drywall mount kit

SPK: Suspension mount kit

EM: Emergency 90 Minute Battery Backup

Warranty

5-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated
