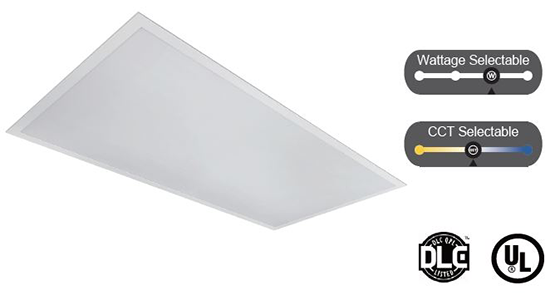

LED Back-Lit Multi Watt-CCT Panel 2×2 2×4

Description

LED Back-Lit Multi Watt-CCT Panel 2×2 2×4

• Wattage is field adjustable between 29 Watts(3,200 LM), 34 Watts(3,800 LM), 39 Watts(4,300 LM), or 49 Watts(5,600 LM)
• Lumens per Watt are 110+LPW
• CCT is field adjustable between 3500K, 4000K, or 5000K
• Length is 2 feet by 4 feet(2’x4′)
• 0-10V Dimmable
• Lay-In Standard Mounting
• Architectural grade design, ideal light emitting, building comfortable living,and working environment
• Perfect for applications with frequent “on/off” switching cycles
• Optimize light diffusion with no risk of yellowing over product life time
• Instant on, no flash or buzz
• Optimized light distribution performance with translucent lens and crafted white frame
• Standard integrated driver enables slim installation depth
• Emits virtually no UV rays or IR
• Integrated driver box for fast and easy wiring
• over 50% energy savings vs traditional fluorescent troffers
• Wattage & CCT selectable

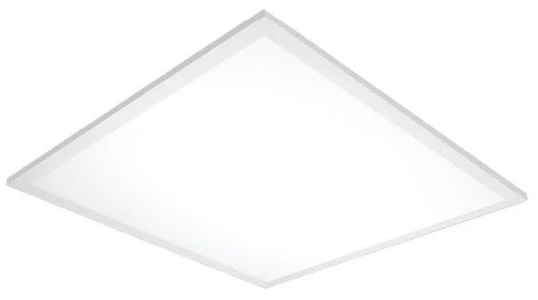

• Wattage is field adjustable between 15 Watts(1,700 LM), 19 Watts(2,100 LM), 24 Watts(2,700 LM), or 29 Watts(3,200 LM)
• Lumens per Watt are 110+LPW
• CCT is field adjustable between 3500K, 4000K, or 5000K
• Length is 2 feet by 2 feet(2’x2′)
• 0-10V Dimmable
• Lay-In Standard Mounting
• Architectural grade design, ideal light emitting, building comfortable living,and working environment
• Perfect for applications with frequent “on/off” switching cycles
• Optimize light diffusion with no risk of yellowing over product life time
• Instant on, no flash or buzz
• Optimized light distribution performance with translucent lens and crafted white frame
• Standard integrated driver enables slim installation depth
• Emits virtually no UV rays or IR
• Integrated driver box for fast and easy wiring
• over 50% energy savings vs traditional fluorescent troffers
• Wattage & CCT selectable

Options

SMK: Surface mount kit

Warranty

10-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated
