LED Area Lights

Description

LED Area Lights

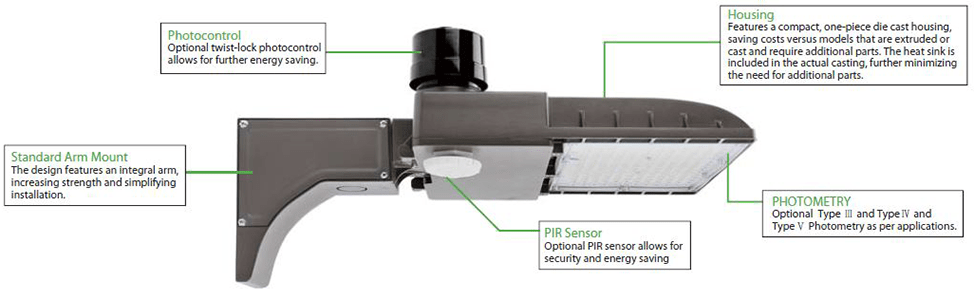

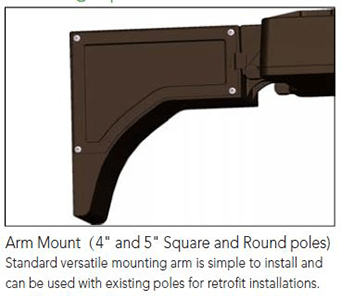

Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED Area Lights.  Standard versatile mounting arm accommodates multiple drilling patterns as well as square and round poles.  The optics can conform to dark sky requirement.  Optional occupancy sensor is available.  Suitable for mounting heights ranging from 26-50’ in area lighting applications.

• The design can be operated by one person to install the whole lamp

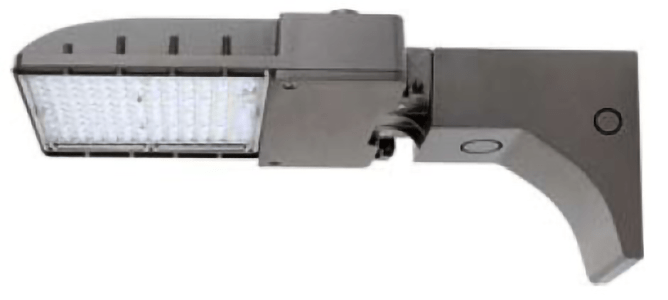

• Lumen Output is 40W(5,400LM), 70W(9,600LM), & 100W(13,500LM)
• Available in IES Type III, IV, V distributions
• Efficacy is 135LPW
• Universal 120-277 VAC or 347-480 VAC input voltage
• Dimmable from 0-10V Continuous
• Light engines are available in standard 4000K and 5000K (70 CRI) configurations
• IP67 Rated for Wet Locations
• Housing is completely sealed against moisture and environmental contaminants
• IK10/20J Impact Protection
• Neutral Salt Spray / Fog Rating is Grade 9
• Surge Protection 3kV-6.6kV: LN, 5kV-10kV: LN-PE/N-PE
• Vibration Rating is 3g
• Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
• Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard
• Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing
• For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed

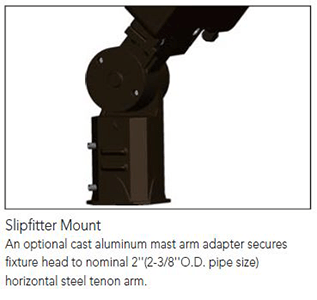

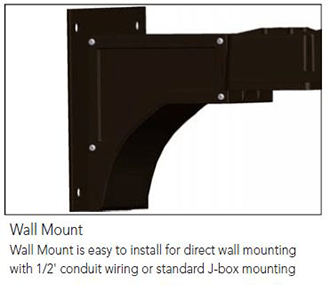

• Round pole, Square pole, slipfitter and wall mount are available
• THD: ≤20%
• Power Factor: ≥90%
• It’s available in black or optional dark bronze, silvery gray or white.
• Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• UL wet location listed and DLC qualified

• The design can be operated by one person to install the whole lamp

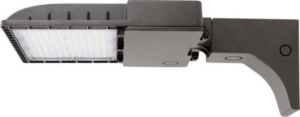

• Lumen Output is 150W(20,500LM) & 200W(25,500LM)
• Available in IES Type III, IV, V distributions
• Efficacy is 135LPW
• Universal 120-277 VAC or 347-480 VAC input voltage
• Dimmable from 0-10V Continuous
• Light engines are available in standard 4000K and 5000K (70 CRI) configurations
• IP67 Rated for Wet Locations
• Housing is completely sealed against moisture and environmental contaminants
• IK10/20J Impact Protection
• Neutral Salt Spray / Fog Rating is Grade 9
• Surge Protection 3kV-6.6kV: LN, 5kV-10kV: LN-PE/N-PE
• Vibration Rating is 3g
• Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
• Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard
• Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing
• For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed
• Round pole, Square pole, slipfitter and wall mount are available
• THD: ≤20%
• Power Factor: ≥90%
• It’s available in black or optional dark bronze, silvery gray or white.
• Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• UL wet location listed and DLC qualified

• The design can be operated by one person to install the whole lamp

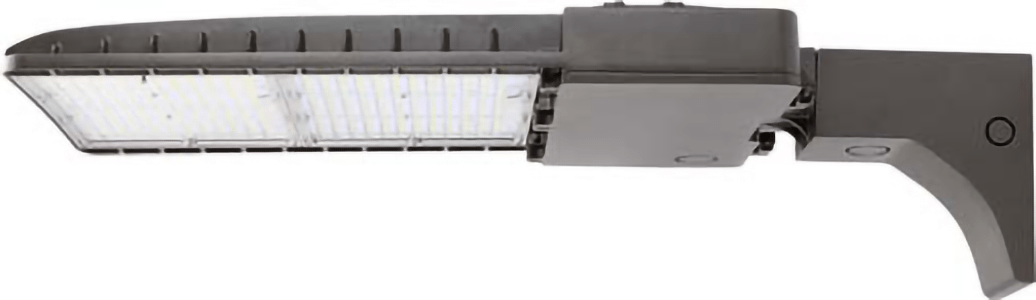

• Lumen Output is 250W(34,000LM) & 300W(40,500LM)
• Available in IES Type III, IV, V distributions
• Efficacy is 135LPW
• Universal 120-277 VAC or 347-480 VAC input voltage
• Dimmable from 0-10V Continuous
• Light engines are available in standard 4000K and 5000K (70 CRI) configurations
• IP67 Rated for Wet Locations
• Housing is completely sealed against moisture and environmental contaminants
• IK10/20J Impact Protection
• Neutral Salt Spray / Fog Rating is Grade 9
• Surge Protection 3kV-6.6kV: LN, 5kV-10kV: LN-PE/N-PE
• Vibration Rating is 3g
• Ambient operating temperature -40˚ C to 45˚ C (-40℉ to 113℉).
• Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard
• Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing
• For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed
• Round pole, Square pole, slipfitter and wall mount are available
• THD: ≤20%
• Power Factor: ≥90%
• It’s available in black or optional dark bronze, silvery gray or white.
• Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• UL wet location listed and DLC qualified

Options

480V:  347V-80V Driver

Warranty

5-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP65 Rated

High Lumen Area Light Option
