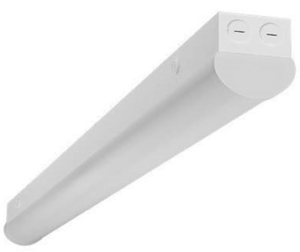

Tunable LED Strip Fixture 2FT 4FT 8FT

Description

Tunable LED Strip Fixture 2FT 4FT 8FT

Tunable LED Strip Fixtures in 2ft, 4ft, & 8ft length for New Construction or Remodel make an excellent energy reducing choice.  Advantageous 3CCT 35K/40K/50K Field Tunable and Power Selectable field switch is an All-In-One Solution for Commercial, Industrial, Retail, Manufacturing, Warehouse, Display, Corridors, Storage, & Stairway applications.  Surface Mount, Suspension Mount, or T-Grid Mounted, either in a single-fixture configuration or as a continuous row.

• Wattage is field adjustable between 15 Watts(1,950 LM), 20 Watts(2,600 LM), or 25 Watts(3,250 LM)
• Lumens per Watt are 130LPW
• Adjustable color temperature (3500K, 4000K, 5000K)
• Continuous row mounting (daisy chaining)
• Length is 2 feet (2’)
• 0-10V dimming (0% minimum)
• Polycarbonate frosted lens with translucent end caps
• New Construction or New Remodel
• Input frequency: 50/60
• Ra>80
• THD＜20%
• PF>0.90
• Beam angle: 120°
• Surge protection: 2KV
• 100,000-hour rated life (@L70)
• ETL rated for damp locations: -4°F – 113°F

• Wattage is field adjustable between 30 Watts(3,900 LM), 40 Watts(5,200 LM), or 50 Watts(6,500 LM)
• Lumens per Watt are 130LPW
• Adjustable color temperature (3500K, 4000K, 5000K)
• Continuous row mounting (daisy chaining)
• Length is 4 feet (4’)
• 0-10V dimming (0% minimum)
• Polycarbonate frosted lens with translucent end caps
• New Construction or New Remodel
• Input frequency: 50/60
• Ra>80
• THD＜20%
• PF>0.90
• Beam angle: 120°
• Surge protection: 2KV
• 100,000-hour rated life (@L70)
• ETL rated for damp locations: -4°F – 113°F

• Wattage is field adjustable between 50 Watts(6,500 LM), 60 Watts(7,800 LM), or 70 Watts(9,100 LM)
• Lumens per Watt are 130LPW
• Adjustable color temperature (3500K, 4000K, 5000K)
• Continuous row mounting (daisy chaining)
• Length is 8 feet (8’)
• 0-10V dimming (0% minimum)
• Polycarbonate frosted lens with translucent end caps
• New Construction or New Remodel
• Input frequency: 50/60
• Ra>80
• THD＜20%
• PF>0.90
• Beam angle: 120°
• Surge protection: 2KV
• 100,000-hour rated life (@L70)
• ETL rated for damp locations: -4°F to 113°F

Options

SFAM02: Suspension mount kit

SFAM06: 4’ Wire harness kit

SFAM07: 8’ Wire harness kit

EB10: 10W emergency battery backup

EBCM: Ceiling-mounted indicator module

EBAM: Adhesive-mounted indicator module

Warranty

10-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated

Retrofit Strip Option

https://ledinventory.com/product/led-strip-retrofit-kit-4ft-8ft/
