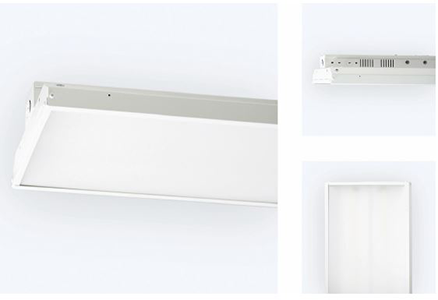

DuraGem LED Linear High Bay 2FT 4FT

Description

DuraGem LED Linear High Bay 2FT 4FT

The 2ft & 4ft DuraGem LED high bay series is designed for Indoor and Industrial lighting. Accessories include wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits, smart sensors, & emergency (90-min) battery backup.

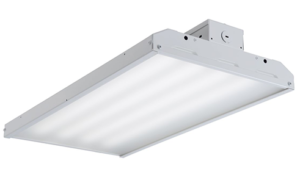

• Easy installation in new construction or retrofit 2 Feet Long
• Wattages available in 90W(11,700LM), 110W(14,300LM), or 165W(21,060LM)
• Lumens per Watt are 130LPW
• CCT is available in 4000K or 5000K
• Pure White Semi-Gloss Housing
• 0-10V Dimmable
• Long-life LEDs provide 75,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Painted steel housings are standard
• Frosted Polycarbonate Lens
• Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard
• cULus listed for damp or dry locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F)

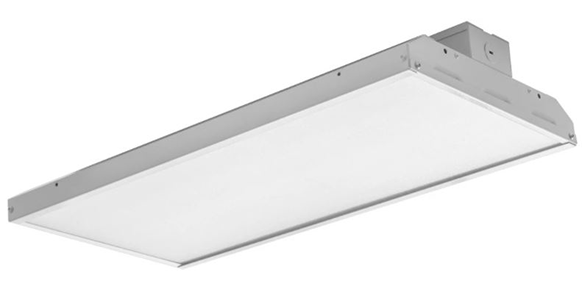

• Easy installation in new construction or retrofit 4 Feet Long
• Wattages available in 225W(29,250LM) or 321W(41,730LM)
• Lumens per Watt are 130LPW
• CCT is available in 4000K or 5000K
• Pure White Semi-Gloss Housing
• 0-10V Dimmable
• Long-life LEDs provide 75,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Painted steel housings are standard
• Frosted Polycarbonate Lens
• Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard
• cULus listed for damp or dry locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F)

Options

HBWG2M: Wire Guard (Fits: 2-FT 90W, 110W models)

HBWG2L: Wire Guard (Fits: 2-FT 162W models)

HBWG4M: Wire Guard (Fits: 4-FT 225W models)

HBWG4L: Wire Guard (Fits: 4-FT 321W models)

HBPM: Pendant Mount Bracket

AC-10: 10-FT Galvanized Aircraft Cables for Hanging (Pair)

EFS01RE: INSTALLED – Smart Sensor for Photocell and PIR Bi-Level Motion Dimming

RM51: Wireless Remote Controller to Smart Sensor

BLD-AM20D-480800: INSTALLED – Emergency Battery Backup Tunable, Select (10W, 15W, 20W)

Warranty

7-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP40 Rated

ProGem High Bay Option
