Tunable LED Troffer Retrofit with PIR

Description

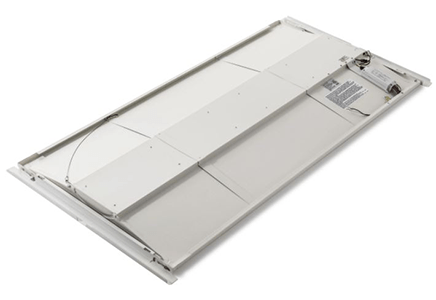

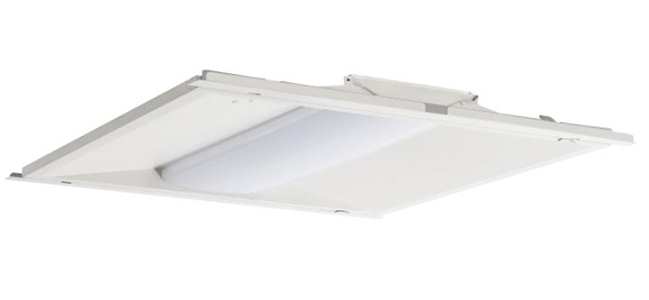

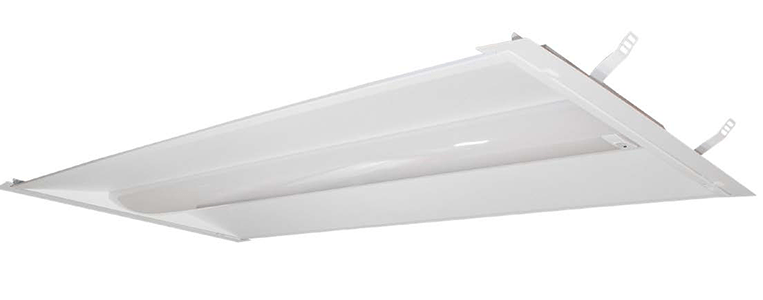

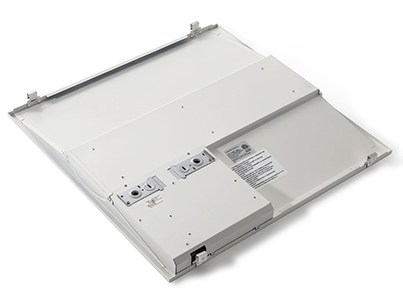

Tunable LED Troffer Retrofit with PIR

Tunable LED Center Basket Troffer Retrofit Door Kit with Built-In On/Off PIR Occupancy Sensor for amazing energy savings for Retrofit Applications.  Wattage Field Tunable.  Single CCT color in 4000K or 5000K.  Quick and Easy Installation.

• Wattage is field adjustable between 24 Watts(3,000LM) and 36 Watts(4,680 LM)
• Lumens per Watt are 130LPW
• Multi Input Voltage 120-277V AC
• Dimmable from 0-10V Continuous
• CCT 40K or 50K
• Length is 2 feet by 2 feet(2’x2′)
• Frosted PC Lens
• Ra>80
• THD＜20%
• PF>0.90
• Lifespan is 70,000+ hours
• Requires housing for retrofit installation

• Wattage is field adjustable between 24 Watts(3,000LM), 36 Watts(4,680 LM), and 50 Watts(6,500 LM)
• Lumens per Watt are 130LPW
• Multi Input Voltage 120-277V AC
• Dimmable from 0-10V Continuous
• CCT 40K or 50K
• Length is 2 feet by 4 feet(2’x4′)
• Frosted PC Lens
• Ra>80
• THD＜20%
• PF>0.90
• Lifespan is 70,000+ hours
• Requires housing for retrofit installation

Options

06278: Wireless remote controller with LCD Display

Warranty

7-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated

New Construction Option

All-Inclusive LED 3CCT Center Basket
