Jubilant 3CCT-3Watt LED Center Basket

Description

Jubilant 3CCT-3Watt LED Center Basket

Commercial LED 2×2 & 2×4 Center Basket Troffer for New Construction or Retrofit Applications.  3-Wattage Selectable & 3CCT 35K/40K/50K Field Tunable.  All-In-One Solution for interior applications.

ETH-TTR-22-30W

• Wattage is field adjustable between 20 Watts(2,600 LM), 25 Watts(3,250 LM), or 30 Watts(3,900 LM)
• Lumens per Watt are 130LPW
• CCT is field adjustable between 3500K, 4000K, or 5000K

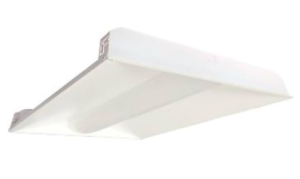

• Length is 2 feet by 2 feet(2’x2′)
• Frosted PC Lens
• New Construction or New Remodel
• Ra>80
• THD＜20%
• PF>0.90
• Lifespan is 75,000+ hours

ETH-TTR-24-45W

• Wattage is field adjustable between 30 Watts(3,900 LM), 35 Watts(4,550 LM), or 42 Watts(5,460 LM)
• Lumens per Watt are 130LPW
• CCT is field adjustable between 3500K, 4000K, or 5000K

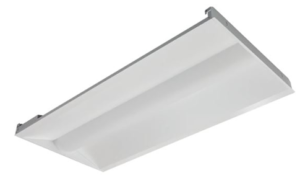

• Length is 2 feet by 4 feet(2’x4′)
• Frosted PC Lens
• New Construction or New Remodel
• Ra>80
• THD＜20%
• PF>0.90
• Lifespan is 75,000+ hours

Options

None

Warranty

7-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated

Troffer Retrofit Kit Options

Euphoric 2×2-2×4 Retrofit Door Kit
