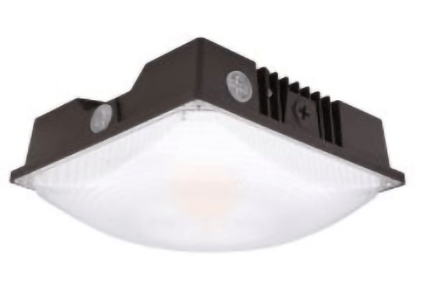

Square Canopy 25-40-60W-3CCT Selectable

Description

Square Canopy 25-40-60W-3CCT Selectable

3CCT Tunable Square Canopy with Watt/Power field-select switch light is sturdy die-cast aluminum housing finished with corrosion free powder coating.  Easy installation options for every project using Surface Mount standard.  Perfect lighting for parking structures, canopies, car parks, soffits, & other outdoor corridors.

• 3P60 Wattages available in 25W(3,625LM), 40W(5,800LM), & 60W(8,700LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

• 3P60 Wattages available in 25W(3,625LM), 40W(5,800LM), & 60W(8,700LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

Options

BMS: Bi-level & Daylight Motion Sensor

BMSR:  Remote Controller for Bi-Level & Daylight Motions Sensor (Controls Multiple)

BTS:  Blue-Tooth Wireless Control

HV:  High-Voltage Driver (347-480V)

EMB: Emergency Battery Backup (90 Minute/Internal 20W)

Warranty

5-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP65 Rated

LED Round Canopy Option

https://ledinventory.com/product/3cct-round-canopy-with-power-selection/
