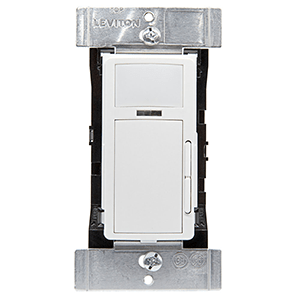

Smart Wall Sensor ODD10-IDW

Description

Smart Wall Sensor ODD10-IDW

Smart Sensor, PIR, Antimicrobial, Wallbox, 0-10V Dimming, App configurable; Auto-ON/Auto-OFF or Manual-ON/Auto-OFF, neutral wire required, 120/208/220/230/240/277VAC, 50/60Hz, Commercial Grade, White. Wall plate sold separately.  Ideal for installations where manual-ON switching is required for energy code applications.

• Fits in a standard wallbox and gangable with other units
• ODD24-IDW is designed for use with a power pack (OPP20 or OSA20)
• 180° field-of-view provides approximately 1,100 square feet of coverage
• Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
• Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
  • Adjust the sensitivity of the sensor to increase or decrease coverage area
  • Adjust timeouts
  • Activate the nightlight and select nightlight colors
  • Add daylighting hold-off and select target daylighting hold-off levels
• Set a security code to lock configuration settings
• Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts
• Out-of-the-box configuration default mode:
  • Auto-ON/auto-OFF with 10-minute time out
  • Sensitivity set to 75%
  • Nightlight and daylighting hold-off disabled
• Can be used to comply IECC, ASHRAE 90.1 and 2019 Title 24, Part 6 dimming, occupancy/vacancy sensing and daylight harvesting requirements

Options

None

Warranty

5-Year Manufacturer Limited Warranty

Certifications

cULus, IECC, FCC, ICC IP10 Rated
