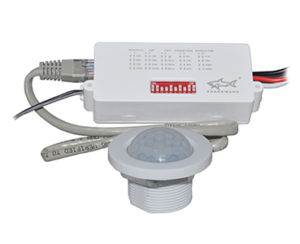

PIR Motion Sensor BRI810-B-M8

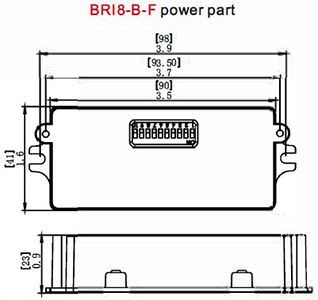

BRI8-B Dimensions

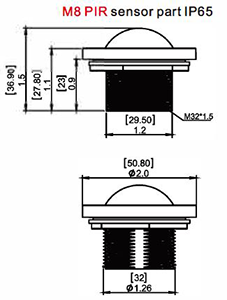

M8 PIR Dimensions

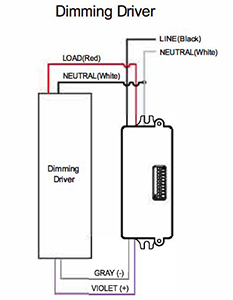

BRI8-B Dimming Driver Wiring Diagram

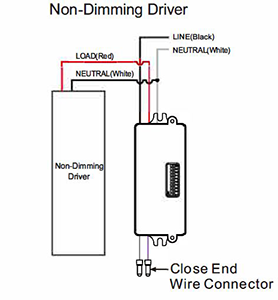

BRI8-B Non-Dimming Driver Wiring Diagram
PIR Motion Sensor BRI810-B-M8
BRI8-B Dimensions
M8 PIR Dimensions
BRI8-B Dimming Driver Wiring Diagram
BRI8-B Non-Dimming Driver Wiring Diagram

PIR Motion Sensor BRI810-B-M8

Original price was: $60.00.Current price is: $35.71.

SKU BRI810-B-M8

PIR Motion Sensor BRI810-B-M8

Add to Wishlist
Add to Wishlist
Secure CheckoutContractor Pricing AvailableTechnical SupportFast Shipping

Need job pricing or technical confirmation?

A team member will review the request manually and follow up outside checkout.

SKU: BRI810-B-M8 Categories: , , , , , , ,

Description

PIR Motion Sensor BRI810-B-M8

The BRI810-B-M8 has a detached PIR Motion Sensor

BRI810-B-M8
Fixture Mount with Optional Remote Controller for added energy savings.  BRI810-B-M8
  • 3 levels of light (Bi-Level Dimming)
  • Selectable Waiting Time
  • Hold-Time and Stand-By Period from 10 seconds to 60 minutes
  • Provides Line Voltage On/Off Switching
  • 120V-277V Input Voltage
  • 0-10V Dimming Control
  • 25mA sinking current
  • Adjustable ramp up and fade down times
  • 40FT Maximum Height
  • 40°F – 158°F (-40°C – 70°C)
  • Weight 0.83lbs(0.38kg)

Options

RC-100:  Handheld Wireless Configuration Tool

Warranty

5-Year Manufacturer Limited Warranty

Certifications

cULus, UL 773A, FCC, CE Listed

Fixture Mount Sensor Option

https://ledinventory.com/product/pir-occupancy-0-10v-daylight-harvest/

Additional information

Weight 3 lbs
Dimensions 5 × 4 × 3 in
