ProGem LED Linear High Bay 2FT 4FT

ProGem LED Linear High Bay 2FT 4FT

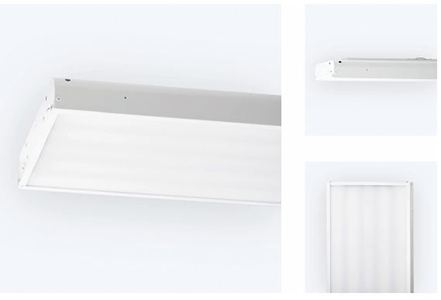

The 2ft & 4ft ProGem LED high bay series is designed for Indoor and Industrial lighting. Accessories include wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits, smart sensors, & emergency (90-min) battery backup.

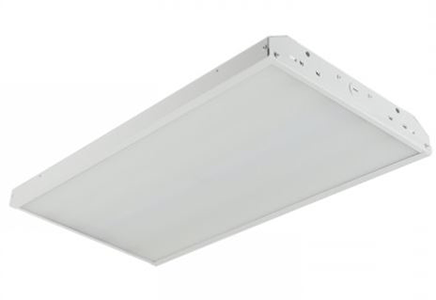

• Easy installation in new construction or retrofit 2 Feet Long
• Wattages available in 80W(12,000LM) or 110W(16,500LM)
• Lumens per Watt are 150LPW
• CCT is available in 4000K or 5000K
• Pure White Semi-Gloss Housing
• 0-10V Dimmable
• Long-life LEDs provide 75,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Painted steel housings are standard
• Frosted Polycarbonate Lens
• Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard
• cULus listed for damp or dry locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F)

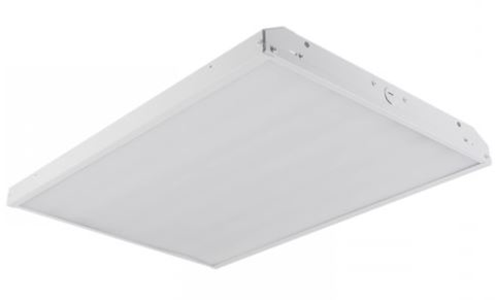

• Easy installation in new construction or retrofit 2 Feet Long
• Wattages available in 165W(24,750LM)
• Lumens per Watt are 150LPW
• CCT is available in 4000K or 5000K
• Pure White Semi-Gloss Housing
• 0-10V Dimmable
• Long-life LEDs provide 75,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Painted steel housings are standard
• Frosted Polycarbonate Lens
• Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard
• cULus listed for damp or dry locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F)

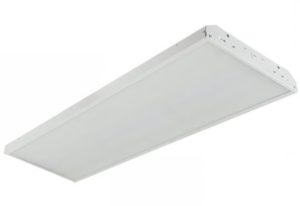

• Easy installation in new construction or retrofit 4 Feet Long
• Wattages available in 165W(24,750LM), 225W(33,750LM), or 325W(48,750LM)
• Lumens per Watt are 150LPW
• CCT is available in 4000K or 5000K
• Pure White Semi-Gloss Housing
• 0-10V Dimmable
• Long-life LEDs provide 75,000 hours of operation
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Painted steel housings are standard
• Frosted Polycarbonate Lens
• Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard
• cULus listed for damp or dry locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F)

Options

PHBWG2M: Wire Guard (Fits: 2-FT 80W, 110W models)

PHBWG2L: Wire Guard (Fits: 2-FT 165W models)

PHBWG4M: Wire Guard (Fits: 4-FT 165W, 225W models)

PHBWG4L: Wire Guard (Fits: 4-FT 320W, 325W models)

HBPM: Pendant Mount Bracket

AC-10: 10-FT Galvanized Aircraft Cables for Hanging (Pair)

EFS01RE: INSTALLED – Smart Sensor for Photocell and PIR Bi-Level Motion Dimming

RM51: Wireless Remote Controller to Smart Sensor

BLD-AM20D-480800: INSTALLED – Emergency Battery Backup Tunable, Select (10W, 15W, 20W)

Warranty

7-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP40 Rated

DuraGem High Bay Option
