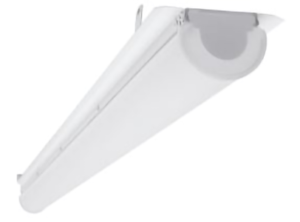

LED Strip Retrofit Kit 4FT 8FT

LED Strip Retrofit Kit 4FT 8FT

The 4ft & 8ft Tunable LED strip retrofit kit gives you the polished look of a new diffuser lens without the hassle of installing new fixtures.  It can be assembled in single or continuous row mounting for seamless lighting enabled by connectability and illuminated end caps.  Clips and adjustable brackets allow for a universal retrofit of narrow and wide strip fixtures. No need to dispose of existing housing or touch up ceiling paint after install.  Save Labor & Time and the process is quick and easy.

Application: Healthcare and hospitals, Schools and universities, Sports facilities & gyms, Retail, Corridors, Task areas, & Aisles.

• Easy upgrade of existing fixtures and no need to repaint
• Safe for food service applications
• Wattage is available in 24 Watts(3,120 LM) or 30 Watts(3,900 LM)
• Lumens per Watt are 130LPW
• CCT 3500K, 4000K, or 5000K

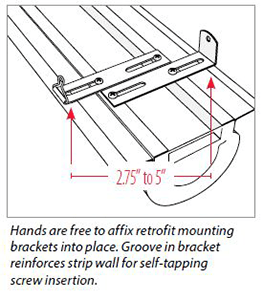

• Adjustable brackets fit 2.75” – 5” wide housings
• Continuous row mounting (daisy chaining)
• Length is 4 feet (4’)
• 0-10V dimming (0% minimum)
• Polycarbonate frosted lens with translucent end caps
• Input frequency: 50/60
• Ra>80
• THD＜20%
• PF>0.95
• Beam angle: 110°
• 100,000-hour rated life (@L70)
• ETL rated for damp locations: -4°F – 113°F

• Easy upgrade of existing fixtures and no need to repaint
• Safe for food service applications
• Wattage is 64 Watts(8,320 LM)
• Lumens per Watt are 130LPW
• CCT 3500K, 4000K, or 5000K
• Adjustable brackets fit 2.75” – 5” wide housings
• Continuous row mounting (daisy chaining)
• Length is 8 feet (8’)
• 0-10V dimming (0% minimum)
• Polycarbonate frosted lens with translucent end caps
• Input frequency: 50/60
• Ra>80
• THD＜20%
• PF>0.95
• Beam angle: 110°
• 100,000-hour rated life (@L70)
• ETL rated for damp locations: -4°F – 113°F

Options

SFAM02: Suspension mount kit

SFAM06: 4’ Wire harness kit

SFAM07: 8’ Wire harness kit

EB10: 10W emergency battery backup

EBCM: Ceiling-mounted indicator module

EBAM: Adhesive-mounted indicator module

Warranty

10-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated

New Construction / Remodel Option
