LED Emergency Battery LSED20W

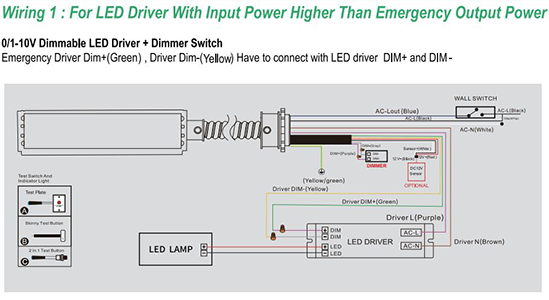

EM Battery 20W Diagram Driver+Switch

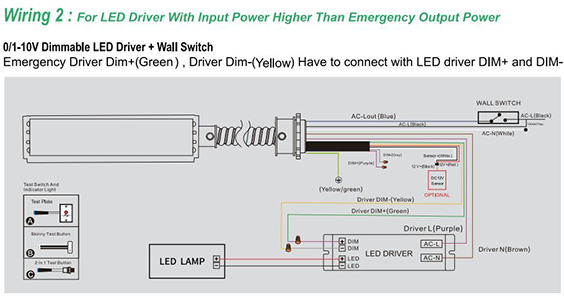

EM Battery 20W Diagram Driver+Wall+Switch

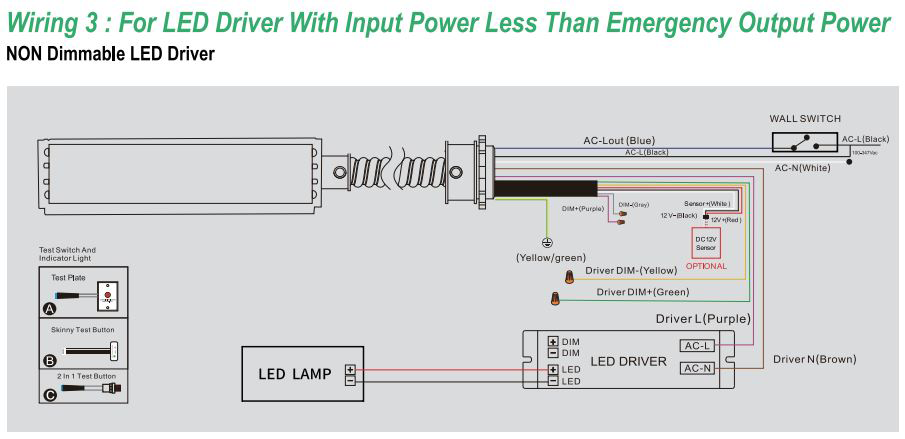

EM Battery 20W Diagram Non-Dimmable Driver
LED Emergency Battery LSED20W
EM Battery 20W Diagram Driver+Switch
EM Battery 20W Diagram Driver+Wall+Switch
EM Battery 20W Diagram Non-Dimmable Driver

LED Emergency Battery LSED20W

Original price was: $237.50.Current price is: $121.43.

SKU LSED16W

LED Emergency Battery LSED20W

Add to Wishlist
Add to Wishlist
Secure CheckoutContractor Pricing AvailableTechnical SupportFast Shipping

Need job pricing or technical confirmation?

A team member will review the request manually and follow up outside checkout.

SKU: LSED16W Categories: , , ,

Description

LED Emergency Battery LSED20W

LED emergency converter that can transfer standard LED fitting into emergency LED fitting.  The LSED20W is designed specifically for High Voltage Drivers.

Application:  <150W(0/1-10V Dimmable Fixture) <20W LED Lamps without dimming function.

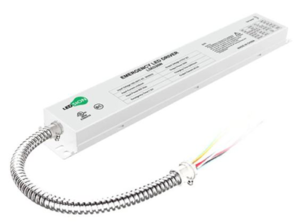

EM Battery High-Voltage 0-10V Dimming Internal Driver or External Driver
EM Battery High-Voltage 0-10V Dimming Internal Driver or External Driver
  • 100-347VAC, 50/60Hz Input Voltage
  • <100mA Input Current
  • 8W max Input Power
  • <175VDC Output Voltage
  • 20W Output Power
  • 90 Minute Discharging Time
  • 24 Hour Charging Time
  • Conduit Length 17″
  • LiFePO4 and Li-ion Battery
  • One-Piece Enclosed Battery & Driver with Metal Cable
  • Applications:  LED Tube / LED Integrated Tube / LED Downlight
  • Field Installation
  • Dimensions 12.91″x1.9″x0.94″
  • 0℃ to+50℃（32°F to122°F ) Ambient Temperature

Warranty

5-Year Manufacturer Limited Warranty

Certifications

UL Listed, RoHS, FCC, IP20 Rated, and CE compliant.

Alternative Option

90 Minute EM Battery Backup for Low-Voltage Fixtures
