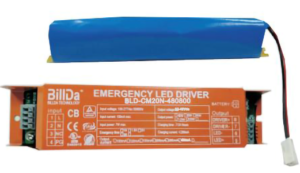

Emergency LED Driver BLD-CM20N
The BLD-CM20N-480800 provides 90 minutes of emergency backup power and easily mounts inside the fixture. When the AC power goes out,The emergency driver detects the AC power outage and automatically switch to the working emergency mode. The green LED light off.When the AC power is restored,the emergency driver backs to AC power working and starts re-charging, the green LED light on.
- External LiFeP04 battery-6.4V/3000mAh
- Battery protections over charge protection over discharge protection short circuit protection
- Indicator shows a variety working modes
- The batteries Meet 500 cycles of standard CH and standard DCH
- Emergency 1.5 hours
- 120V-277VAC Universal Input Voltage
- 50/60Hz Frequency
- 100mA max AC Input Current
- 7.0 max AC Input Power Rating
- 200-400mA Output Current
- 25-48VDC Output Voltage
- 8W Output Power
- Illuminated Test Switch Indicator Light
- 250mA Battery Charging Current
- 24 Hours Battery Full Charge
- 0°C to 50°C (32°F to 122°F) Ambient Temperature

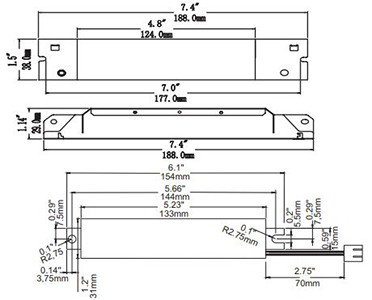

- Dimensions 7.4”x1.5”x1.1” (188mmx38mmx29mm)
- Weight 0.83lbs(0.38kg)
Options
None
Warranty
5-Year Manufacturer Limited Warranty
Certifications
cULus, Standard CSA C22.2 NO.141 UL924
