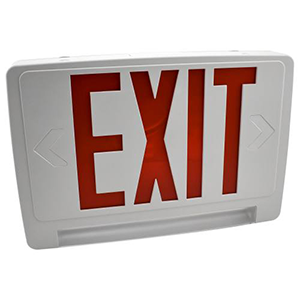

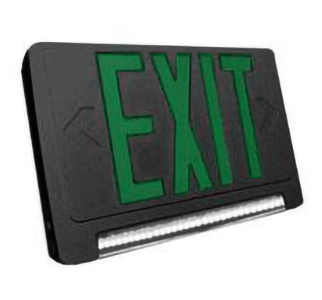

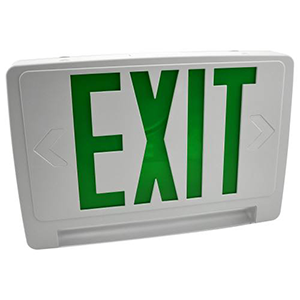

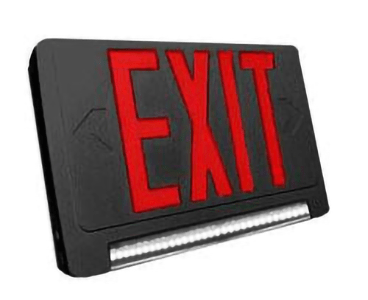

Lightpipe LED Exit and Emergency Combo

Description

Lightpipe LED Exit and Emergency Combo

Lightpipe LED Exit & Emergency Combo Signs for interior applications such as School Lighting, Commercial Lighting, Hospitality Lighting, Healthcare Lighting, and Retail Lighting.  Ultra bright, energy efficient white LED emergency lighting.  Mounting canopy included for top or end mount.  Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finishes.

• Dual 120V-277VAC comes standard
• 4.5W (36 LEDs x 0.125 watts) per light pipe
• Adjustable high performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized “Light Pipe” lens for optimal light distribution
• Long life, energy efficient Red or Green LED EXIT sign illumination
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED Light Pipe for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Universal K/O pattern on back plate for wall mount
• Remote capable standard
• EZ snap-out chevron directional indicators
• Suitable for Damp Locations (0°C – 50°C)

• Dual 120V-277VAC comes standard
• 4.5W (36 LEDs x 0.125 watts) per light pipe
• Adjustable high performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized “Light Pipe” lens for optimal light distribution
• Long life, energy efficient Red or Green LED EXIT sign illumination
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED Light Pipe for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Universal K/O pattern on back plate for wall mount
• Remote capable standard
• EZ snap-out chevron directional indicators
• Suitable for Damp Locations (0°C – 50°C)

• Dual 120V-277VAC comes standard
• 4.5W (36 LEDs x 0.125 watts) per light pipe
• Adjustable high performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized “Light Pipe” lens for optimal light distribution
• Long life, energy efficient Red or Green LED EXIT sign illumination
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED Light Pipe for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Universal K/O pattern on back plate for wall mount
• Remote capable standard
• EZ snap-out chevron directional indicators
• Suitable for Damp Locations (0°C – 50°C)

• Dual 120V-277VAC comes standard
• 4.5W (36 LEDs x 0.125 watts) per light pipe
• Adjustable high performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized “Light Pipe” lens for optimal light distribution
• Long life, energy efficient Red or Green LED EXIT sign illumination
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED Light Pipe for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Universal K/O pattern on back plate for wall mount
• Remote capable standard
• EZ snap-out chevron directional indicators
• Suitable for Damp Locations (0°C – 50°C)

Options

SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.

Custom: Signs available with requested “special” wording

Warranty

5-Year Manufacturer Limited Warranty. (Battery prorated for five years)

Certifications

cULus, Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
