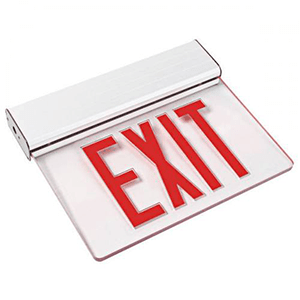

Edge Lit Surface Exit Sign

Edge Lit Surface Exit Sign

Universal Edge-Lit Surface Exit Sign interior applications such as School Lighting, Commercial Lighting, Hospitality Lighting, Healthcare Lighting, and Retail Lighting.  Ultra bright, energy efficient, long life Red or Green LED.  UV-stabilized ultra-clear acrylic edge-lit panel provides consistent, uniform illumination.  Double face utilizes factory installed silver or white mylar background panel.  Custom lettering is also available and can be used universally.

ELXTEU

• 120V-277VAC comes standard *Optional multi-tap 208/220/240 voltage available
• Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Retrofit Existing Fluorescent Troffers or New Remodel
• Aluminum mounting canopy included for top, end or back mount
• Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes)
• Self-adhesive chevron appliques and guide template provided for directional indication
• Suitable for Damp Locations

Warranty

5-Year Manufacturer Limited Warranty. (Battery prorated for five years)

Certifications

cULus, Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes

Edge-Lit Recessed Mount Option
