Decorative Outdoor LED AC Emergency

Description

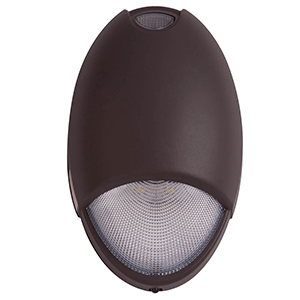

Decorative Outdoor LED AC Emergency

Decorative outdoor LED AC emergency lighting for interior applications such as School Lighting, Commercial Lighting, Hospitality Lighting, Healthcare Lighting, and Retail Lighting.  Long life, efficient, ultra bright white LED. Decorative, Low Profile, architectural design.  Surface mount via easy connect back plate that fits most standard size junction boxes.  Durable powder-coated finishes in white, black, nickel and dark bronze.

• 6W (2 LEDs x 3.0 watt) per unit
• Mirror-bright reflector and prismatic polycarbonate refractor
• Can be used as a Normally-ON or Normally-OFF light as well as on a switched circuit.
• Dual 120V-277VAC comes standard.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Self-diagnostic test feature continually diagnoses units performance and tests system to ensure reliable operation and to meet electrical and life safety codes
• Field-selectable wiring allows for “AC” operation of the unit to be controlled using a wall-switch or a photocell or any other switching mechanism
• Universal K/O pattern on back plate for wall mount
• Threaded opening at the top of the enclosure for conduit mount
• Die-cast aluminum housing
• Sealed and gasketed
• Suitable for Wet Locations (0°C – 50°C)

Options

CW: Optional internal heater for extreme cold temperature applications (-20°C – 50°C)

PC: Unit features optional photocell technology that automatically responds to low exterior lighting levels in “AC” mode.

Warranty

5-Year Manufacturer Limited Warranty. (Battery prorated for five years)

Certifications

cULus, Meets NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
