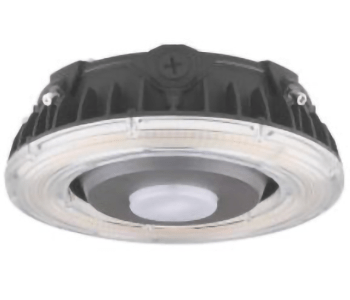

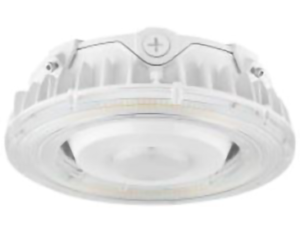

3CCT Round Canopy with Power Selection

3CCT Round Canopy with Power Selection

3CCT Tunable round Canopy with Watt/Power field-select switch light is sturdy die-cast aluminum housing finished with corrosion free powder coating.  Easy installation options for every project using Surface Mount standard.  Perfect lighting for parking structures, canopies, car parks, soffits, & other outdoor corridors.

• 5P55 Wattages available in 22W(3,190LM), 30W(4,350LM), 38.5W(5,583LM), 47W(6,815LM), & 55W(7,975LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

• 5P55 Wattages available in 22W(3,190LM), 30W(4,350LM), 38.5W(5,583LM), 47W(6,815LM), & 55W(7,975LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

• 5P100 Wattages available in 60W(8,700LM), 70W(10,150LM), 80W(11,600LM), 90W(13,050LM), & 100W(14,500LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

• 5P100 Wattages available in 60W(8,700LM), 70W(10,150LM), 80W(11,600LM), 90W(13,050LM), & 100W(14,500LM)
• 120V-277VAC
• Lumens per Watt are 145LPW
• 3CCT Selectable Field Switch in 3000K/4000K/5000K
• Distribution V Type/Angle Beam 150°
• Housing: Die cast aluminum
• 0-10V Dimmable
• 50,000 Life Hours
• PF >0.9
• THD <20%
• UL Listed IP65 Wet Location Rated -4F° to 124 F°

Options

BMS: Bi-level & Daylight Motion Sensor

BMSR:  Remote Controller for Bi-Level & Daylight Motions Sensor (Controls Multiple)

BTS:  Blue-Tooth Wireless Control

HV:  High-Voltage Driver (347-480V)

EMB: Emergency Battery Backup (90 Minute/Internal 20W)

Warranty

5-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP65 Rated

LED Square Canopy Option
