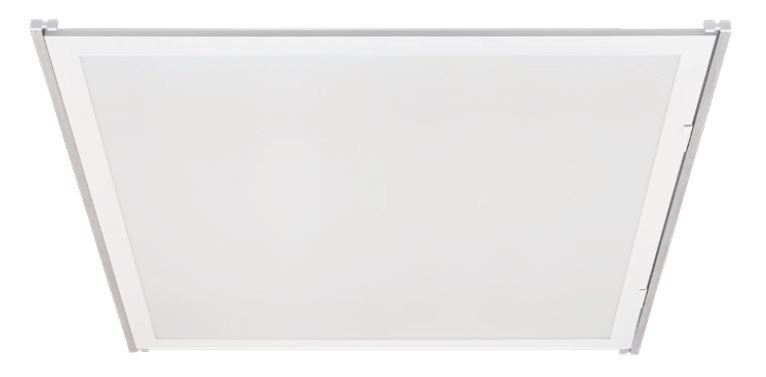

2×2 1×4 2×4 Flat Panel LED Retrofit Kits

Description

2×2 1×4 2×4 Flat Panel LED Retrofit Kits

1×4, 2×2, & 2×4 Panel Light for Retrofit Applications.  All-In-One Solution for interior applications such as School Lighting, Commercial Lighting, Hospitality Lighting, Healthcare Lighting, and Retail Lighting.  Integrated field adjustable power switch conveniently offers adjustable power control and lumen output in one solution.

PRT235

• Wattage is field adjustable between 18 Watts(2,250 LM), 20 Watts(2,500 LM), 25 Watts(3,125 LM), 30 Watts(3,750 LM), or 36 Watts(4,500 LM)
• Lumens per Watt are 125LPW
• 0-10V Dimmable
• 120V-277VAC
• CCT is available between 3500K, 4000K, or 5000K
• Length is 2 feet by 2 feet(2’x2′)
• Frosted Anti-Yellowing PC Lens
• Sealed Enclosure is Bug & Dust-Free
• Retrofit Existing Fluorescent Troffers or New Remodel
• Ra>80
• THD＜20%
• PF>0.90
• Beam Angle 110°
• Lifespan is 100,000+ hours
• Suitable for Damp Locations
• Industry Leading 10-Year Warranty
• Optional EM Battery Backup is available.

PRT135

• Wattage is field adjustable between 18 Watts(2,250 LM), 20 Watts(2,500 LM), 25 Watts(3,125 LM), 30 Watts(3,750 LM), or 36 Watts(4,500 LM)
• Lumens per Watt are 125LPW
• 0-10V Dimmable
• 120V-277VAC
• CCT is available between 3500K, 4000K, or 5000K
• Length is 1 feet by 4 feet(1’x4′)
• Frosted Anti-Yellowing PC Lens
• Sealed Enclosure is Bug & Dust-Free
• Retrofit Existing Fluorescent Troffers or New Remodel
• Ra>80
• THD＜20%
• PF>0.90
• Beam Angle 110°
• Lifespan is 100,000+ hours
• Suitable for Damp Locations
• Industry Leading 10-Year Warranty
• Optional EM Battery Backup is available.

PRT435

• Wattage is field adjustable between 25 Watts(3,125 LM), 30 Watts(3,750 LM), 40 Watts(5,000 LM)or 36 Watts(4,500 LM)
• Lumens per Watt are 125LPW
• 0-10V Dimmable
• 120V-277VAC
• CCT is available between 3500K, 4000K, or 5000K
• Length is 2 feet by 4 feet(2’x4′)
• Frosted Anti-Yellowing PC Lens
• Sealed Enclosure is Bug & Dust-Free
• Retrofit Existing Fluorescent Troffers or New Remodel
• Ra>80
• THD＜20%
• PF>0.90
• Beam Angle 110°
• Lifespan is 100,000+ hours
• Suitable for Damp Locations
• Industry Leading 10-Year Warranty
• Optional EM Battery Backup is available.

Warranty

10-Year Manufacturer Limited Warranty

Certifications

DLC Premium, cULus,CE, FCC, RoHS, IP20 Rated

New Construction Option
